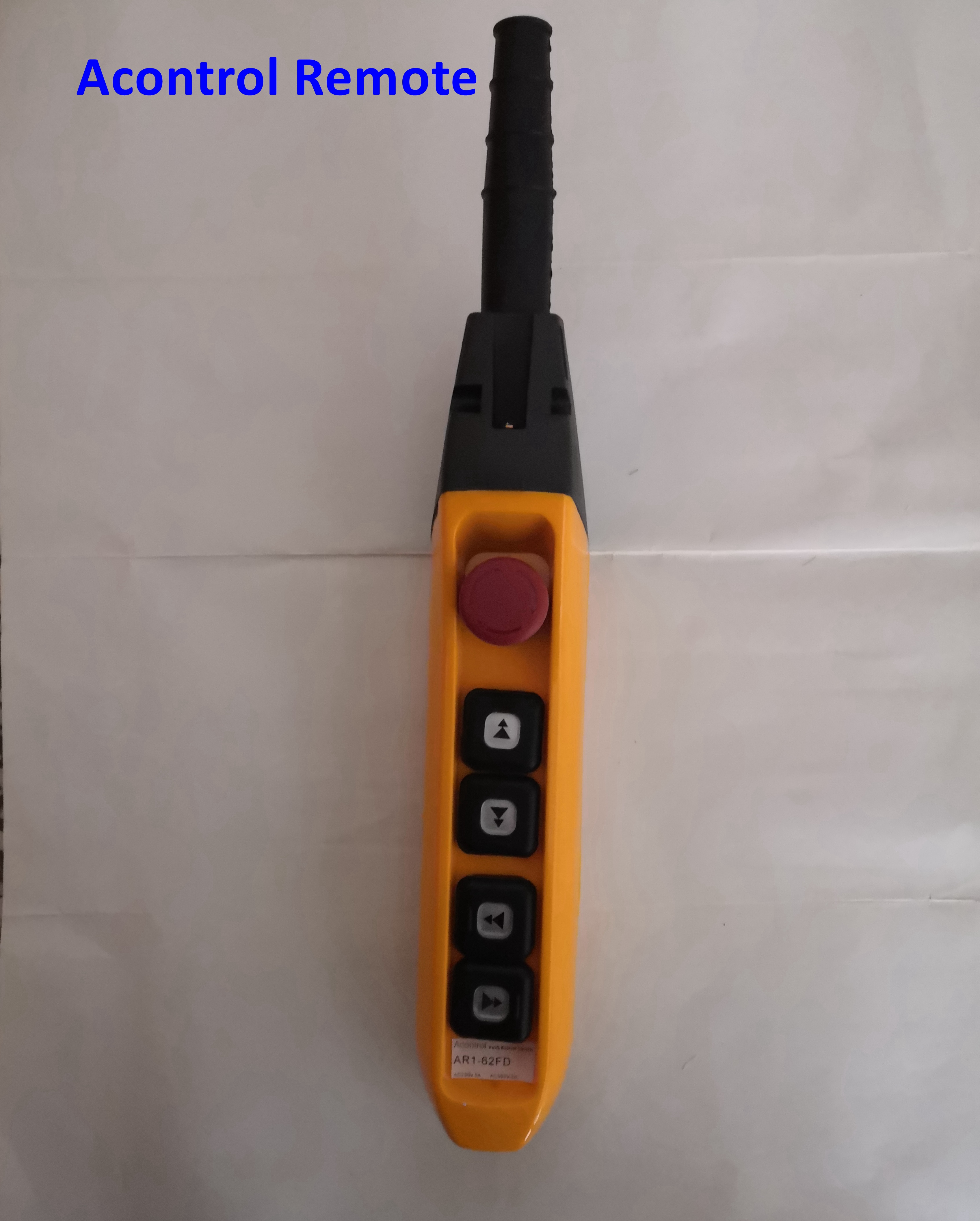

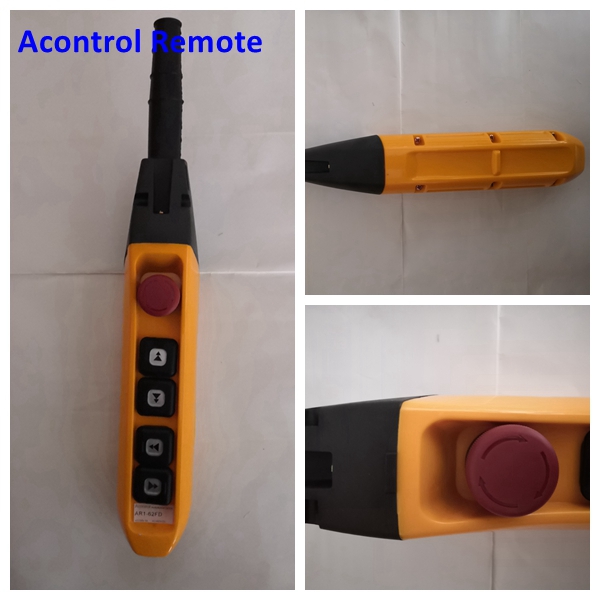

Pendant Control For Hoist
Pendant Control For Hoist is compact and ergonomic design, and 2 / double push button.
The enclosures are made from rugged, double insulated thermoplastic material.
These stations have been designed for easy handling and operation, even with heavy work gloves.
This model is belong to F series. Except this kind, we also have XAC series(Schneider Model),Y series, C series, H series, etc,
Also, the button is from 2 button to 6 button. it according to the model of pendant , single or double speed control system. Mechanical interlock for safety reason.
Max Current: 10A
Max Voltage: 500V
Button No.: 4 push button + E-stop
Speed: double / 2 speed
Working temperature: -45~55（℃)
Material: Yellow ABS enclosure
This model is one important parts in crane industry, mainly control the equipment by wired.

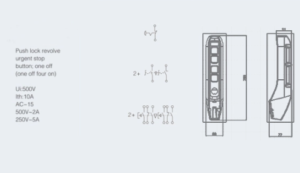

Emergency Stop: if there is emergency case, the equipment will be stop right now when you press the mushroom
Function Button : “↑” “↓” ” →” “←” , single speed
|Number of Buttons||4|
|Button Text||Arrow Tip|
1 piece per box, 28pieces per carton, carton size:52*41*37
This model are mainly used in Crane industry,
- EOT crane
- Overhead crane
- Bridge crane
- Single girder overhead crane
- Double girder overhead crane
- Top running overhead crane
- Under hung overhead crane
- Workstation overhead crane
1. Sample to test is available
2. Customized Brand is available
3. Delivery Fast: 3-4 days for sampling and 7 days for small volume orders
4. CE,FCC standard
Remote Control Switch and Push Button Switch are including 2 button , 4 button, 6 button, 8 Button, 10 button, 12 button, single speed and double speed.
