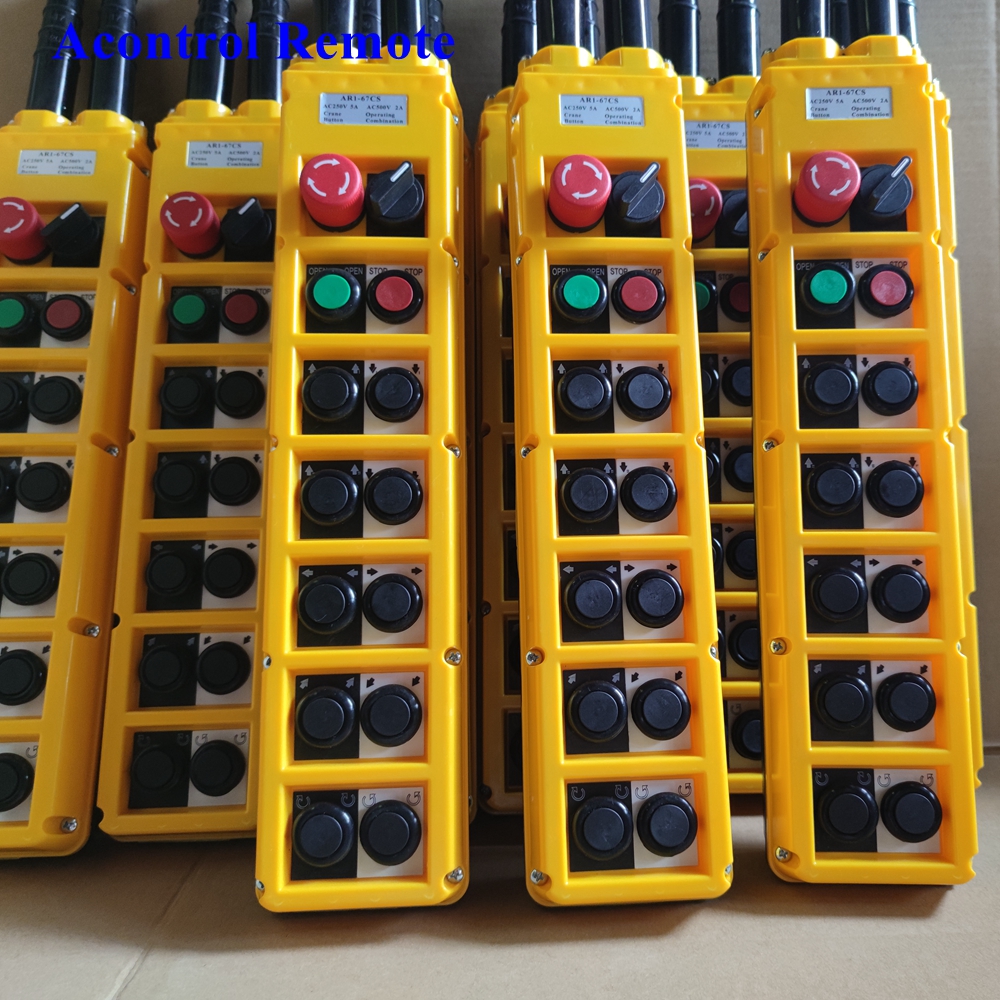

Crane Hoist Control
Description:
Model: AR1-67CS
Button No.:10 + Open + Stop + Emergency Stop + Selector Switch
Speed: Single / 1
Email: [email protected]
Crane Hoist Control
Crane Hoist Control is compact and ergonomic design, and 1 Speed push button
This model is belong to C series. Except this kind, we also have XAC series(Schneider Model),Y series, F series, H series, etc,
Also, the button is from 2 button to 20 button. it according to the model of pendant , single or double speed control system. Mechanical interlock for safety reason.
Basic Information:

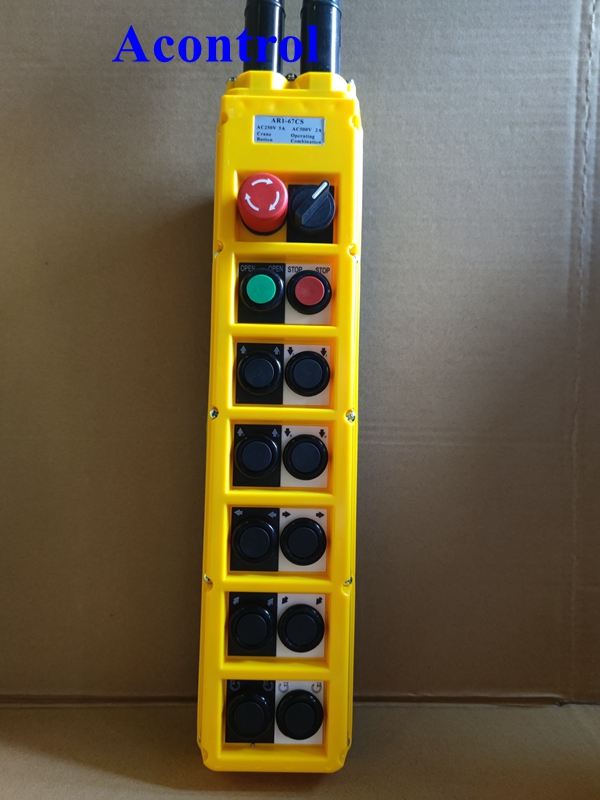

Model: AR1-67CS (10 single speed button, Open Button, Stop Button, Emergency Stop,Selector switch)
Working Current: 5A
Working Voltage: 500V
Button No.:10 + Open + Stop + Emergency Stop + Selector Switch
Working temperature: -45~55（℃)
Ui:500V
lth:10A
500V-2A
250V-5A
Warranty: 12 months
Advantages:
- Various buttons pendant models (from 2 button to 16 buttons)
- Light Weight
- Standard emergecny switch to cut off the power
- Durable Yellow ABS enclosure
- Ultra-long service life
- Contacts rated 5A at 500VAC
Basic:
| Brand | Acontrol |
| Model: | AR1-67CS |
| Housing Color | Yellow |
| Number of Buttons | 12 |
| Button Color | Black |
| Speed | 1 |
| Start Type | Button |
| Button Type | Combination |
| Button Text | Arrow Tip |
Packing Size:
1 piece per box, 20pcs per carton
Crane Hoist Control are ideal for
- Workstation crane
- Monorails and hoist control
- Electric Chain Winch
- Car Transfer
- Electric chain Hoist
- Devit crane
- Lift
- Garden Machine
- Power lifts of truck
- Electric chain Lift
- Other moving equipment you want to control
FAQ:
1. Sample to test is available
2. MOQ: 1 piece for sample is ok
3. Delivery Fast: 3-4 days for sampling and 7 days for small volume orders
4. CE,FCC standard
