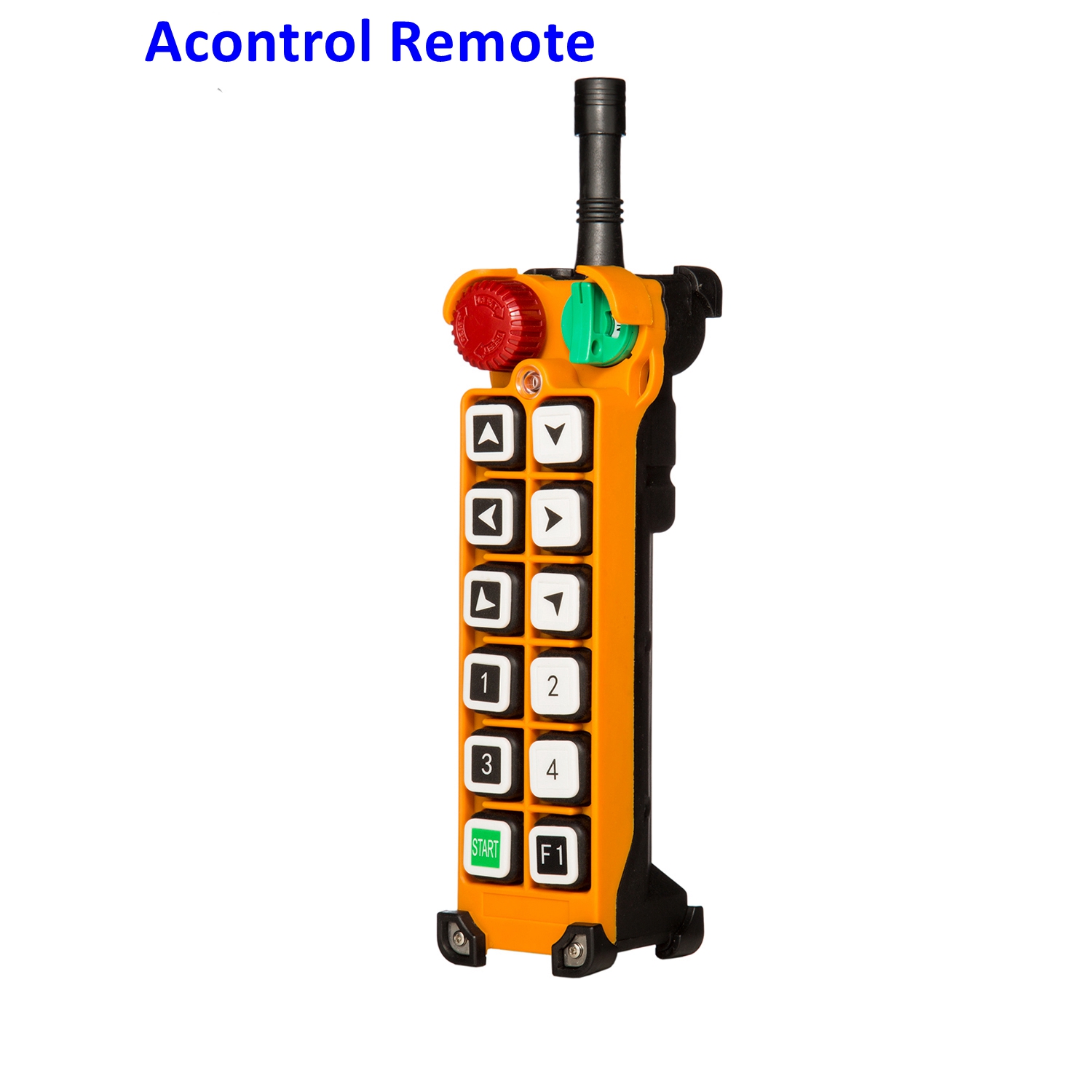

Crane Radio Control System

Crane Radio Control System

Features:

1. Low Cost,Low consumption: DC3V (2 pcs AA batteries)
2. Over 4.3 Billion unique ID code available
3. Structure :Glass-fiber PA
4. Control Distance: up to 100 meters
5. 12 single speed push button  + 1 Emergency stop + 1 on/off
6. 11 commands With battery voltage warning device,the power is cut off    during low power
7. Power key can be set to start, acceleration, toggle switch, general or other  functions
8. Output contact capacity:5Amp Omniseal Relays（AC250V/10A Relays ,10Amp fuse）

Standard:

1. One transmitter;

2. One receiver;

3. One 1m cable connect with receiver

4. One operation and maintain manual.

Basic Information:

Specification of F24-12S:

Transmitter Data:

1. Model: F24-12S-TX
2. Size: 188 x 64 x 48 mm
3. Weight: 291g
4. Protection Degree: IP65
5. Power Supply: DC3V

Receiver Data:

1. Model: F24-12S-RX
2. Size: 212 x164 x78mm
3. Weight: 1400g
4. Protection Degree: IP65
5. Power:AC/DC12V,AC24V,AC36V,AC48V,AC65-440V

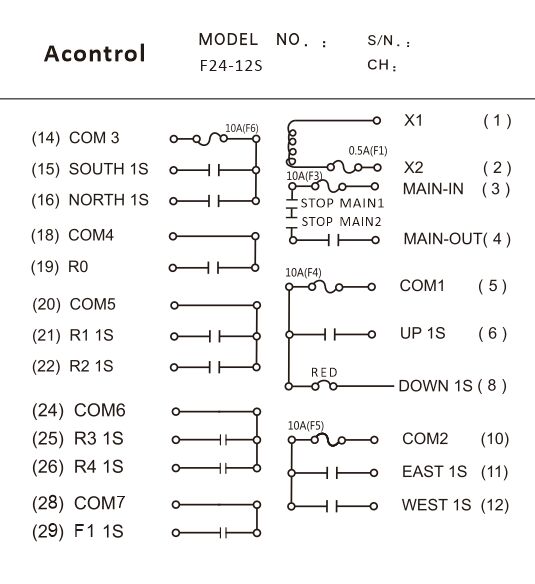

Connection Diagram

Why do you need crane wireless remote control?

For a one-man crane operation, it will be very useful to have because if you are using crane, the last thing you want is to transfer some equipment. So if you are  20meters away or 30meters away from the machine while holding a hose and then you find out you got a plug, you got to run back to the machine, stop the crane, and throw it in reverse. But if you have a wireless remote control, you can stop the machine right on the spot no matter what are you doing

Wireless remote controls can reach all the way up to 100 merters in vertical and horizontal distances. They normally come with 2 AA batteries which are easy to find anywhere and are water proofed for those rugged applications.

Package:

1 set per box

6 sets per carton

Delivery Time:

3-7 working days after receive your full payment .

For more information, please email us, all of your email will reply within 8 hours
