Eot crane remote control
EOT crane remote control has been used in many fields, such as crane, construction crane and so on. The crane radio control system has two independent parts, the receiver and the transmitter, and the working range is up to 100meters, operating frequency is 310-331Mhz , total 80 channels.
It is a kind of device which is used for remote operation control or remote control of industrial machinery by radio transmission. The industrial remote control is a launcher made by wireless transmitting circuit board to control the operation of industrial machinery.
We are direct factory of Demag crane remote control, hoist crane remote control,indsutrail crane remote control system,crane remote control kit,crane remote control machine ,overhead crane radio remote control.
- Low Cost,Low consumption: DC3V (2 pcs AA batteries)
- Over 4.3 Billion unique ID code available
- Structure :Glass-fiber PA
- Control Distance: up to 100 meters

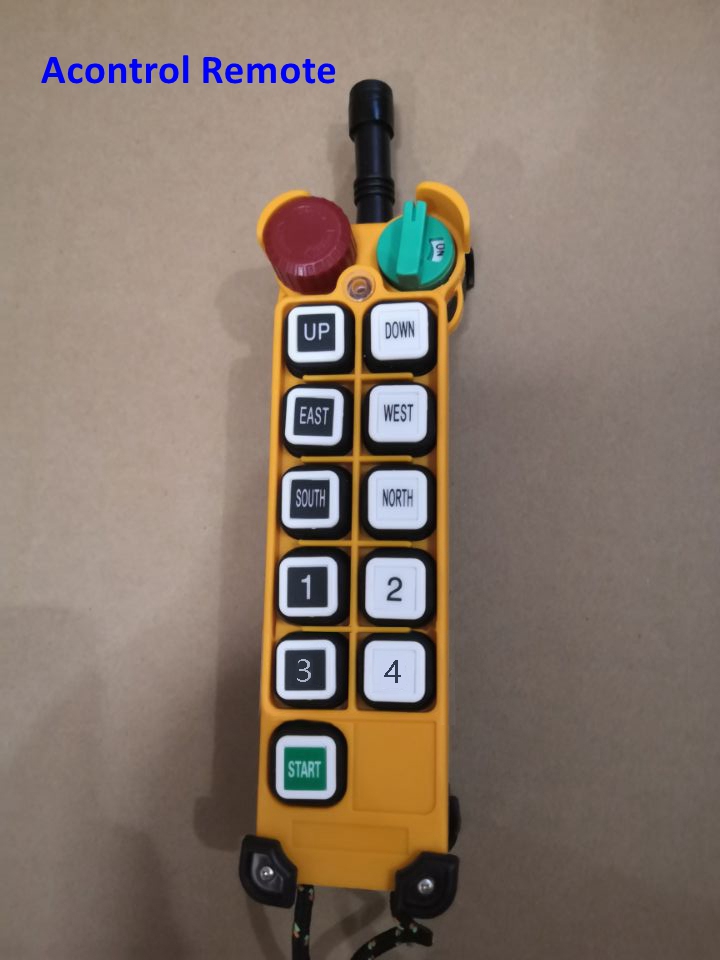

- 10 single speed push button + 1 Emergency stop + 1 on/off
- 11 commands With battery voltage warning device,the power is cut off during low power
- Power key can be set to start, acceleration, toggle switch, general or other functions
- Output contact capacity:5Amp Omniseal Relays（AC250V/10A Relays ,10Amp fuse
|Material||Glass fiber-reinforced nylon|
|Temperature||-35°C ~ +85°C(Regardless of the battery temperature tolerance)|
|Enclosure protection class||IP 65|
|You can power on these votlage||110/ 220V/380V/VAC or 12/24/36/48 VDC.|
1. One transmitter
2. One receiver
3. One cable connect with receiver
4. One operating and maintain manual
Why do you need crane remote control?
For a one-man crane operation, it will be very useful to have because if you are using crane, the last thing you want is to transfer some equipment. So if you are 20meters away or 30meters away from the machine while holding a hose and then you find out you got a plug, you got to run back to the machine, stop the crane, and throw it in reverse. But if you have a wireless remote control, you can stop the machine right on the spot no matter what are you doing
Crane Remote Control can reach all the way up to 100 merters in vertical and horizontal distances. They normally come with 2 AA batteries which are easy to find anywhere and are water-proof and dust-proof for those rugged applications.
1 set per box
6 sets per carton
3-7 working days after receive your full payment .
- Single -Hook
- Mobile Crane
- Lorry-Mounted crane
- Electric hoist
- Hydraulic machinery
