Crane Radio Remote Control
Crane radio remote control has been used in many fields, such as crane, construction crane and so on. The crane radio control system has two independent parts, the receiver and the transmitter, and the working range is up to 100meters, operating frequency is 310-331Mhz or 426-445Mhz, total 160 channels.
To improve your work efficiency and keep your worker’s safy, wireless remote control will be your best choice, single speed or double speed. Except 10 button, we have different number of button, such as 2 button, 4 button, 6 button, 8 button ,10 button, etc.
High quality with reasonable price will offer you by acontrol remote, send your reuqirement or information to us, proper model will be offer you.
Thus, this model are popular in UK market, can be used for mobile lifting, electric cart, hoist, winch, superwinch , etc or other equipment you want to control.
Crane Radio Remote Control Feature:
1. Model: F24-10D
2. 1 transmitter with 1 receiver
3. Double Speed
4,. 10 function button
5. CE,FCC approved
6. Control distance: 100 meters
7. Industrial Use.
8.AC110V
Specifciation of F24-8D:
| Frequency | 310.0325~331.165Mhz |
| Frequency generation: | Crystal (plug in) |
| Channel | 80 |
| Channel Spacing | 0.2675MHz |
| Control motions | 17 |
| Control distance | Up to 100m |
| Certificates | CE, FCC, ISO9001:2008 |
| Number of push button | 10 Double speed push button+1 emergency stop button+ 1 on/off Switch |
| Unique code | Over 4.3billon unique ID codes . |
| Working temperature | -35°C ~ +80°C |
| Enclosure protection class | IP65 |
| Transmitter power | AA-size batteries |
| Receiver power | AC380v/220V/110v/48v/ 36v/24v or AC/DC12V |
| Output capacity | Full sealed relay output with 5 amperes |
| Warranty | 1 year |
| Material | glass fiber |

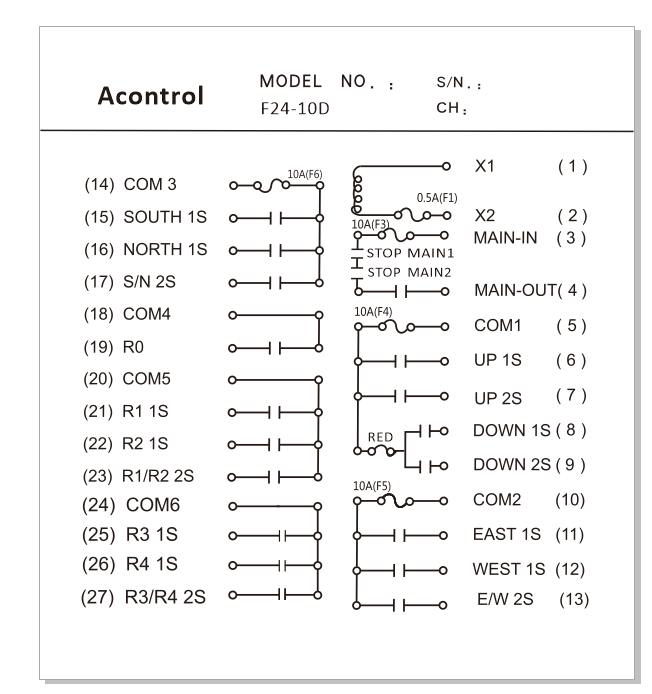

Connection Diagram:
Standard Configuration
One transmitter;
One receiver;
One 1m cable connect with receiver;
One operation and maintain manual.
Application:
1. Lifting Equipment
3. Overhead Crane
4. Bridge Crane
5.Railroad industry
6. Gantry Crane
7. Other equipment and sites which can be worked by radio controls
Notes:
The Led on the front of the transitter indicates the condition of the batteries.
It will flash green during operation if the battery power is sufficient and will flash red if the battery power is depleted.
FAQ:
Q: Is there a warranty?
A: all our branded products are guaranteed for 12 months. We provide 24-hour after-sales service and technical support. Please feel free to contact us if you find any problems during installation.
Q: Will you provide after-sales service?
A: of course
1) all products are subject to strict factory quality inspection before packaging.
2) all products are packaged in our factory, and the second package is delivered through express service before shipment.
3) if there is any problem during operation or installation, please feel free to contact us and we will solve it with professional guidance.
Q: What certificates are approved for your product?
A: we have CE, FCC, ISO9001.
