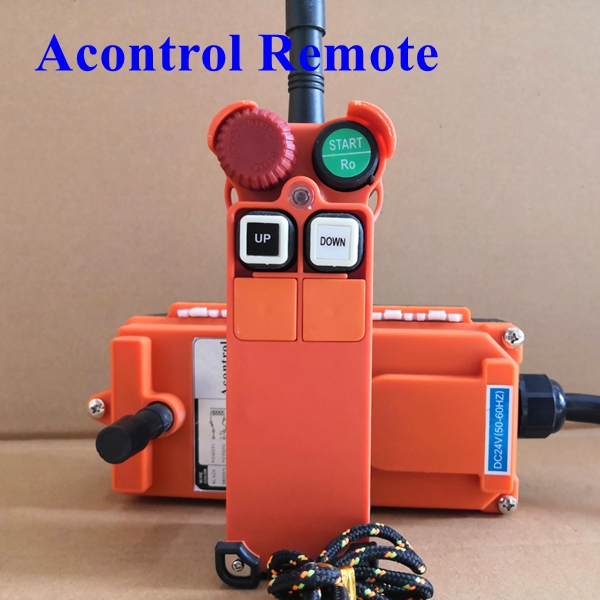

Hoist Radio Remote Control F21-2S
Description:
1.Model :F21-2S
2.2 function button
3. One speed
4. Waterproof and dust-proof
Email:[email protected]
Hoist Radio Remote Control F21-2S
Hoist Radio Remote Control has been used in many fields, such as crane, construction crane and so on. The crane radio control system has two independent parts, the receiver and the transmitter, and the working range is up to 100meters, operating frequency is 310-331Mhz or 426-445Mhz, total 160 channels.

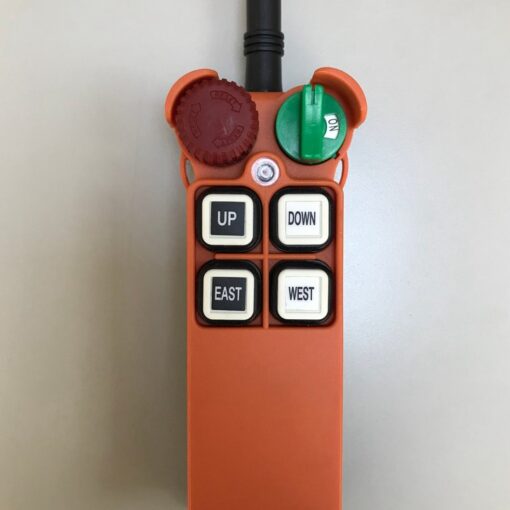

To improve your work efficiency and keep your worker’s safy, wireless remote control will be your best choice, single speed or double speed. Except 4 button, we have different number of button, such as 2 button, 4 button, 6 button, 8 button ,10 button, etc.
High quality with reasonable price will offer you by acontrol remote, send your reuqirement or information to us, proper model will be offer you.
Thus, this model are popular in UK market, can be used for mobile lifting, electric cart, hoist, winch, super winch , etc or other equipment you want to control.
Description:
1.Model :F21-2S
2.2 function button
3. One speed
4. Waterproof and dust-proof
5.Used for chain hoist
Safety Features:
- Unique 4.3 billion ID code
- Hamming Code
- Enhanced watch-dog circuit
Customized product:Button Text: Arrow tip or you offer, 2 transmitter with 1 receiver or spare transmitter, voltage, etc
Basic Information:
Transmitter data:
| TX Model | F 21-2 S-TX-V-(E) |
| TX Size | about 15.6*5.6*4.9 cm |
| TX Weight | about 208 g（without Batteries） |
| Housing Material | Glass fiber-reinforced nylon-6 |
| Protection Degree | IP 65 |
| Temperature Rating | -35°C ~ +85°C(Regardless of the battery temperature tolerance) |
| TX power Supply | Two 1.5 volts Batteries(AA Size) |
| Number of buttons | 2 Single speed buttons,1 START button,1 mushroom button |
| Button Marking | Arrow tip or English |
| I.D.Code | 4.3 billion |
| Voltage Warning | TX Red LED will flash slowly when the volts under 2.2 V,
and unable to start TX under 1.8 V. |
| Operating Frequency | 310.0325-331.165 MHz |
| Channel Spacing | 0.2675 MHz |
| Channel | 80 CH |
| RF Power | <10 DBm |
| Fault Detection | TX Red LED is flashing quickly: 1.Not in the correct way to start; 2.One of the push button is jammed. TX LED will flash slowly: 1.Please change two new batteries |
Receiver Specification
| RX Model | F 21-2 S-RX-V-(E) |
| RX Size | 18.7 x 8.6 x 7.9 cm |
| RX Weight | about 584 g |
| Housing Material | Glass fiber-reinforced nylon-6 |
| Protection Degree | IP 65 |
| connection diagram | English |
| Temperature Rating | -35°C ~ +85°C |
| Power Supply | AC 380 V,AC 36 V,AC 220 V,AC 110 V,AC 48 V,AC 24 V,
AC 12 V / DC 12 V,AC 380 V/AC 220 V(50-60 Hz) |
| Relays | 2 Relays control functions,1 relay control EMS and 1 relay reserve |
| Output Relays | 5 Amp Omniseal Relays（AC 250 V/10 A Relays ,10 Amp fuse） |
| I.D.Code | 4.3 billion |
| Channel Spacing | 0.2675 MHz |
| Channel | 80 CH |
| Sensitivity | ≧-110 DBm |
| Interface | Cable output |
Feature:
- 2 function button (up / down) customized button text are available
- Control Point is up to 2
- Function button can be set to Normal, toggle, etc
- Material: Glass fiber-rain forced nylon-6
- IP 65, waterproof and dust-proof

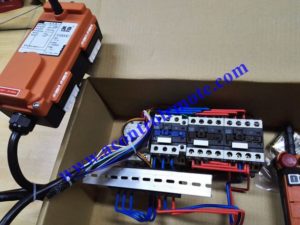

Connection Diagram:
If you want to spare transmitter, it is also available.
Package:
1 set per box, 10 set per carton .
F 21- 2S application:
- Winch equipment
- Hoist equipment
- Lifting equipment
- Electric Cart equipment
- Door
- Other equipment winch control point is under 2.
Small sample order for test is available.
