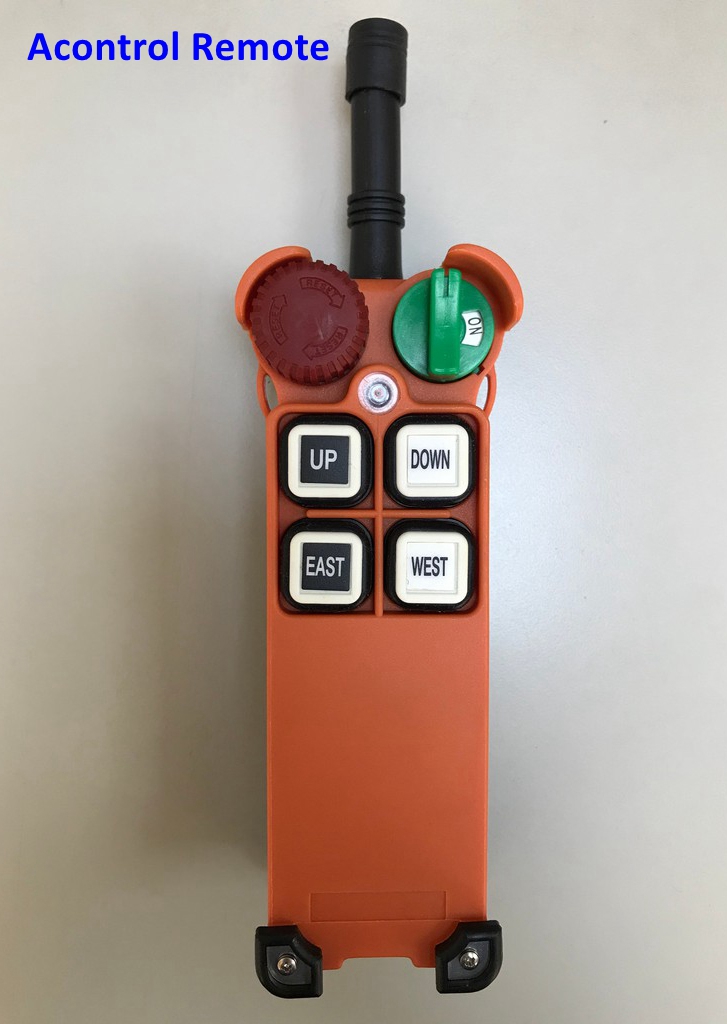

Universal Remote Control
Description:
1.Model: F21-4D
2. 4 function button + 1 Emergency Stop + 1 on/off Switch
2. Control Points:Up to 7
3. Program the button function by computer software
4. UP/DOWN.EAST/WEST cane be programmed
5. Start button can be set to start, normal, toggle, etc
6. Email:[email protected]
Universal Remote Control
Universal Remote Control has been used in many fields, such as crane, construction crane and so on. The crane radio control system has two independent parts, the receiver and the transmitter, and the working range is up to 100meters, operating frequency is 310-331Mhz or 426-445Mhz, total 160 channels.
To improve your work efficiency and keep your worker’s safy, wireless remote control will be your best choice, single speed or double speed.
High quality with reasonable price will offer you by acontrol remote, send your reuqirement or information to us, proper model will be offer you.
It use wireless to transfer signal, it have two parts, one is handeld control called transmitter that send signal and the other parts is receiver which installed in equipment that receive the signal.
Feature:
1. Model: F21-4D
2. 4 Function button + 1 Emergency Stop + 1 on/off Switch
3. Control Points:Up to 7
4. Program the button function by computer software
5. UP/DOWN.EAST/WEST cane be programmed
6. Start button can be set to start, normal, toggle, etc
Specification of F24-4D:
Basic Information:
Transmitter Size: 156 x 56x 49mm Weight: about 208g
Receiver SIze: 187x86x79mm Weight: About 604g
Basic Data:
| TX Model | F21-4D-TX-V-(E) |
| TX Size | about 15.6*5.6*4.9cm |
| TX Weight | about 213g（without Batteries） |
| Housing Color | Orange |
| Protection Degree | IP65 |
| TX power Supply | Two 1.5 volts Batteries(AA Size) |
| Number of buttons | 4 double speed buttons,1 START button,1 mushroom button |
| Button Marking | arrow tip |
| I.D.Code | 4.3 billion |
| Warranty | 1 year |
| Operating Frequency | 310.0325-331.165MHz |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH |
| RF Power | <10DBm |
| Fault Detection | TX Red LED is flashing quickly:1.Not in the correct way to start; 2.One of the push button is jammed. TX LED will flash slowly: 1.Please change two new batteries |
| Control Distance | up to 100meters |
| RX Model | F21-4D-RX-V-(E) |
| RX Size | 18.7×8.6×7.9cm |
| RX Weight | about 624g ( without wire cable ) |
| Housing Material | Glass fiber-reinforced nylon-6 |
| Protection Degree | IP65 |
| connection diagram | English |
| Temperature Rating | -35°C ~ +85°C |
| Power Supply | AC380V,AC36V,AC220V,AC110V,AC48V,AC24V,AC12V/DC12V,
AC380V/AC220V(50-60Hz) |
| Relays | 6 Relays control functions,1 relay control EMS and 1 relay reserve |
| Output Relays | 5Amp Omniseal Relays（AC250V/10A Relays ,10Amp fuse） |
| I.D.Code | 4.3 billion |
| Operating Frequency | 310.0325-331.165MHz |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH |
| Sensitivity | ≧-110DBm |
| Interface | Cable output |
Standard Set:
1. One transmitter
2. One receiver
3. One cable connect with receiver
4. One operating and maintain manual
Safety Features:
- Unique 4.3 billion ID code
- Hamming Code
- Enhanced watch-dog circuit
Package：
1 set per box, 10set per carton
Application:
Universal Remote Control are used for industrial, agricultural, clean, drainage and other industries.
1. Overhead Crane Remote Control system
Overhead crane is one of the most widely used areas of industrial overhead crane radio remote control systems.
2. Mobile crane, truck crane wireless radio remote control system
3. Mining machinery
Mine visibility is low. With remote control systems, greatly increased the safety of operation, comfort and accuracy, saving investment and improve efficiency.
4. Crawler slag loader
The use of industrial remote control device, without changing the existing manual mode of operation to achieve the purpose of unmanned to complete the slag operation. The Eliminating the harsh environment, the unclear line of sight, the hidden dangers from high temperature. Improve the efficiency of cleaning operations, improve the working environment of metallurgical workers and reduce the labor intensity of workers.
FAQ:
A: What’s your warranty?
Q: we have 1 year warranty.
A: What’s your payment term?
Q: TT, Western Union,MoneyGram
A: What’s your shipping ways?
Q: For sample, we will choose express(DHL, UPS, TNT or FEDEX). For bulk goods, it will depends on you, by air or by sea via Qingdao or Shanghai port.
A: can I get a sample to check your quality and how long i can get samples?
Q: yes,very welcome and sample will be finished within 5days.
