Hoist Wireless Remote Control
Description:
1.Model:F21-2D
2. Control Distance: 100 meters
3. Protect Grade:IP65
4. Certification:CE,FCC,ISO
5. Warranty: 1 year
6. MOQ: 1 set as smaple are available
7.2 double speed button + 1 start
8. Email:[email protected]
Hoist Wireless Remote Control
Hoist wireless remote control has two independent parts, the receiver and the transmitter, and the working range is up to 100meters, operating frequency is 310-331Mhz, total 80 channels.
To improve your work efficiency and keep your worker’s safy, wireless remote control will be your best choice, single speed or double speed.
High quality with reasonable price will offer you by acontrol remote, send your reuqirement or information to us, proper model will be offer you.
For F21-2D,there are two function(UP/DOWN) with 2 speed(Up 1 speed and UP2 speed, down 1 speed and down 2 speed).
To improve your work efficiency and keep your worker’s safy, wireless remote control will be your best choice, single speed or double speed.
Description:
- Model:F21-2D
- 1 transmitter with 1 receiver
- AC110V OR AC220V
- Double speed
- 2 function button
- Waterproof
- Used for hoist or mobile lifting or motor
- Button text: arrow tip
Basic Information:
| Brand | Acontrol |
| Model | F21-2D |
| Frequency | Crystal |
| Structure | Glass-Fiber |
| Operation Frequency | 310-331 MHz |
| Control Motions | 3 |
| Unique Code | Over 4.3 billion unique ID codes |
| Working Temperature | -35°C-+80 ºC |
| Output Capacity | Full Sealed Relay output with 5 amperes |
| Control Distance | Up to 100 meters |
Advantage:
- Ergomic and lightweight design
- Safe and reliable
- Fully sealed enclosures
- User-programmable channels
- Removable power key switch
- Advanced controls
Standard Set:
1. One transmitter
2. One receiver
3. One cable connect with receiver
4. One operating and maintain manual

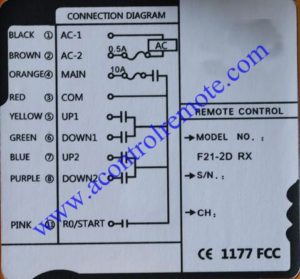

Connection Diagram:
Why do you need crane remote control?
For a one-man crane operation, it will be very useful to have because if you are using crane, the last thing you want is to transfer some equipment. So if you are 20meters away or 30meters away from the machine while holding a hose and then you find out you got a plug, you got to run back to the machine, stop the crane, and throw it in reverse. But if you have a wireless remote control, you can stop the machine right on the spot no matter what are you doing
Wireless remote controls can reach all the way up to 100 merters in vertical and horizontal distances. They normally come with 2 AA batteries which are easy to find anywhere and are water proofed for those rugged applications.
More information about this model, email us, please.
