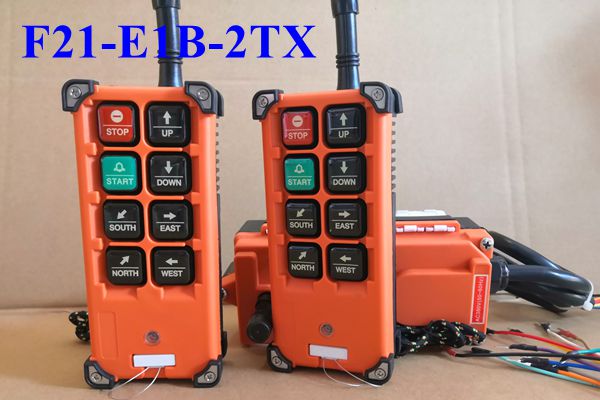

Universal Remote Control
1.Model: F21-E1B-2TX
2. Voltage:DC24V, DC12V, AC110V,AC220V,AC380V,AC12-72V, etc
3. Usage:EOT crane
4. Single speed
5. 6 single speed + start + stop
Email: [email protected]
Universal Remote Control has been used in many fields, such as crane, construction crane and so on. It has two independent parts, te receiver and the transmitter, and the working range is 100-150 meters.
Crane remote control have wireless and pendent control, it is a key important part for crane industry.
A good crane remote control could Improve work efficiency and make your employee safe.
Customized Set:
1. Two transmitter
2. One receiver
3. One cable connect with receiver
4. One operating and maintain manual
Description:
1.Model: F21-E1B-2TX
2. Voltage:DC24V, DC12V, AC110V,AC220V,AC380V,AC12-72V, etc
3. Usage:EOT crane,hoist, winch, ladder hoist, truck, CNC, lift, spray, garden machine, agriculture, automation, machinery, industrial equipment, etc
4. Single speed
5. 6 single speed + start + stop
See the following basic data:
| Control Distance | Up to 100 meters |
| Control Motions | 7 |
| Frequency | Crystal |
| Structure | Glass-Fiber |
| Operation Frequency | 310-331 MHz |
| Certificated | CE,FCC |
| Unique Code | Over 4.3 billion unique ID codes |
| Working Temperature | -35°C-+80 ºC |
| Output Capacity | Full Sealed Relay output with 5 amperes |
| Transmitting Power | Less Than 10mw |
Features:
- 6 function button + 1 start + 1 Stop
- Control Point is up to 7
- With battery voltage warning device, the power supply is cut off during low power
- Program the button function by computer software
- Safty magnetic key prevents from unauthorized user
- Function button can be setting to start, Normal, toggle function
- IP65, waterproof and dust-proof

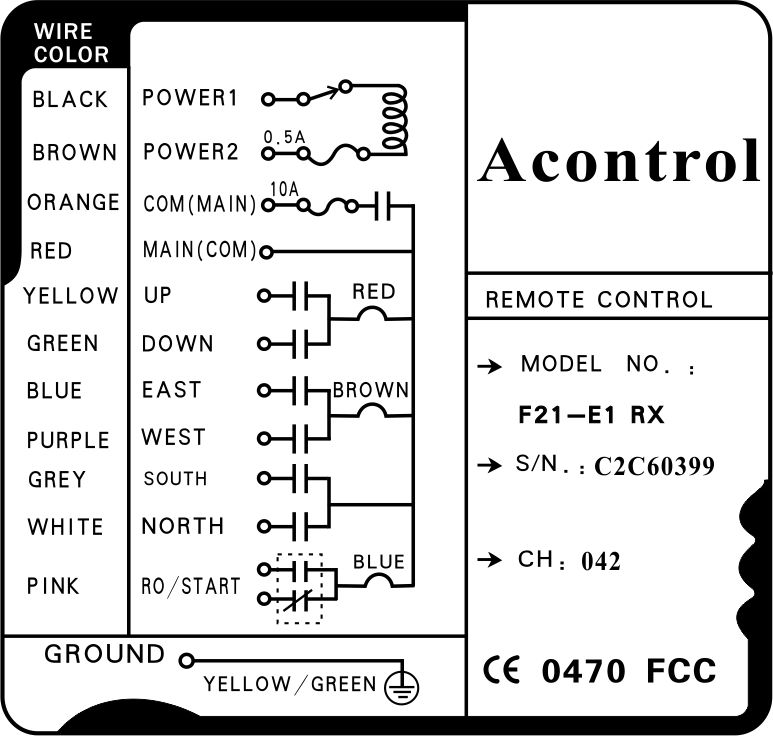

Connection Diagram:
Package：
1 set per box, 10set per carton
FAQ:
A: What’s your warranty?
Q: we have 1 year warranty.
A: What’s your payment term?
Q: TT, Western Union,MoneyGram
A: What’s your shipping ways?
Q: For sample, we will choose express(DHL, UPS, TNT or FEDEX). For bulk goods, it will depends on you, by air or by sea via Qingdao or Shanghai port.
A: can I get a sample to check your quality and how long i can get samples?
Q: yes,very welcome and sample will be finished within 5days.
Application:
- Overhead crane with double gider
- Overhead crane with single gider
- Hoist
- lifting equipment
- Tillar equipment
- Garden Equipment

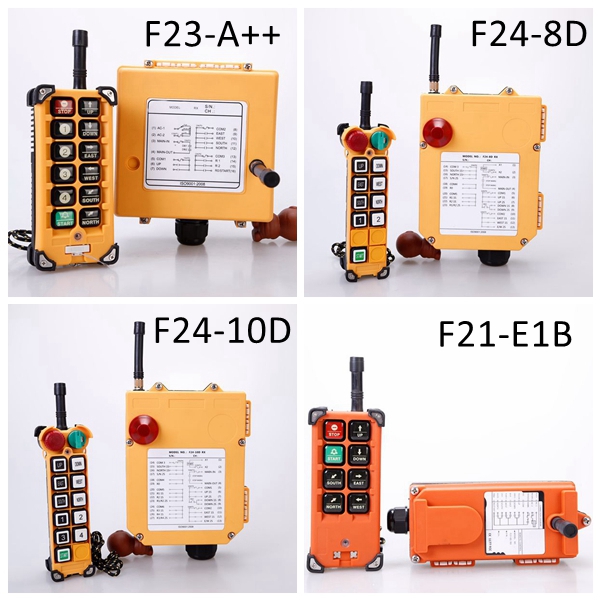

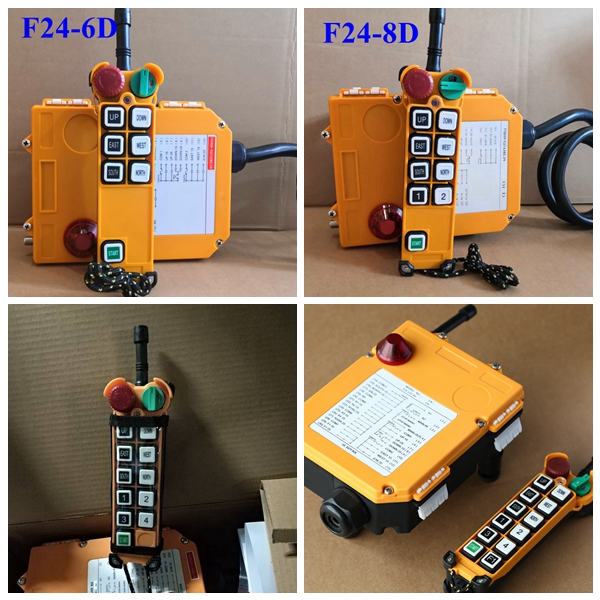

Related Products:
| Transmitter Voltage | DC3V (2 pieces AA batteries) |
|---|---|
| Receiver Voltage | DC12V, DC24V,AC36V,AC48V,AC110V,AC220V,AC380V,AC440V |
| Transmitter Size: | 164x75x46mm |
| Button Number | 8 button |
| Receiver Size: | 187x86x79mm |
| Speed | Single |
