Winch Crane Remote Control
Winch Crane Remote Control has been used in many fields, such as crane, construction crane and so on. The crane radio control system has two independent parts, the receiver and the transmitter, and the working range is up to 100meters, operating frequency is 310-331Mhz or 426-445Mhz, total 160 channels.
To improve your work efficiency and keep your worker’s safy, wireless remote control will be your best choice, single speed or double speed. Except 6 button, we have different number of button, such as 2 button, 4 button, 6 button, 8 button ,10 button, 12 button, 14 button, 16 button, 18 button, 20 button etc.
High quality with reasonable price will offer you by acontrol remote, send your reuqirement or information to us, proper model will be offer you.
Thus, this model are popular in UK market, can be used for mobile lifting, electric cart, hoist, winch, superwinch , etc or other equipment you want to control.
Description:

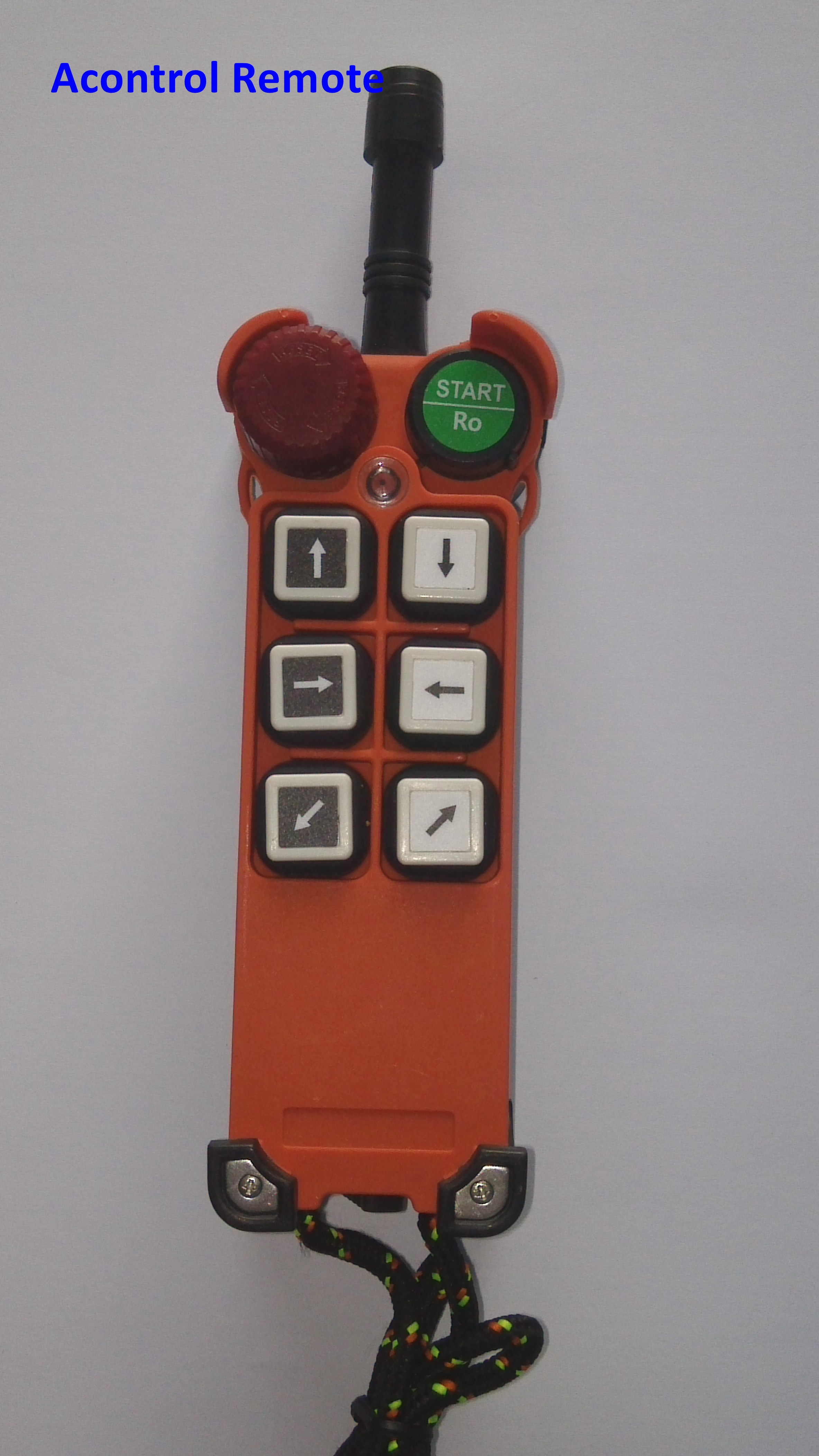

- Model:F21-E1
- 6 function button
- Single Speed
- Push Button
- AC380V
Feature:
1. 6 Single speed push buttons +one EMGS button + one SWITCH
2. Control points up to 6
3. Control distance can reach to 100m
4. Water-proof, IP 65, can be used inner or outside.
5. Glass fiber and engineering-plastics make the cover strong, avoid damage cause by high falling or gravity roller.
6. Wide receiver voltage can meet different requirement.
7. With the Rotate key switch to guarantee the safety.
8. Up/down,east/west,south/north push button can be set start ,close,speed up,jump strokes,ordinary etc
Specification:
Transmitter Data:
| TX Model | F21-E1-TX-V-(E) |
| TX Size | about 15.6*5.6*4.9cm |
| TX Weight | about 211g（without Batteries） |
| Housing Materail | glass fiber-reinforced nylon-6 |
| Protection Degree | IP65 |
| Temperature Rating | -35°C ~ +85°C(Regardless of the battery temperature tolerance) |
| TX power Supply | Two 1.5 volts Batteries(AA Size) |
| Number of buttons | 6 Single speed buttons,1 START button,1 mushroom button |
| Button Marking | arrow tip |
| I.D.Code | 4.3 billion |
| Voltage Warning | TX Red LED will flash slowly when the volts under 2.2V,and unable to start TX under 1.8V. |
| Operating Frequency | 310.0325-331.165MHz |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH |
| RF Power | <10DBm |
| Fault Detection | TX Red LED is flashing quickly: 1.Not in the correct way to start; 2.One of the push button is jammed. TX LED will flash slowly: 1.Please change two new batteries |
Receiver Data
| RX Model | F21-E1-RX-V-(E) |
| RX Size | 18.7×8.6×7.9cm |
| RX Weight | about 624g ( without wire cable ) |
| Housing Material | glass fiber-reinforced nylon-6 |
| Protection Degree | IP65 |
| connection diagram | English |
| Temperature Rating | -35°C ~ +85°C |
| Power Supply | AC380V,AC36V,AC220V,AC110V,AC48V,AC24V, AC12V/DC12V,AC380V/AC220V(50-60Hz) |
| Relays | 6 Relays control functions,1 relay control EMS and 1 relay reserve |
| Output Relays | 5Amp Omniseal Relays（AC250V/10A Relays ,10Amp fuse） |
| I.D.Code | 4.3 billion |
| Operating Frequency | 310.0325-331.165MHz |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH |
| Sensitivity | ≧-110DBm |
| Interface | Cable output |
Connection Diagram:
Standard Configuration:
- One transmitter;
- One receiver;
- One 1m cable connect with receiver
- One operation and maintain manual.
Package:
1set per box, Box size: 32.4×20.9×16.5cm
10 set per carton:67.7X55X36.2 cm
Certification:
CE,FCC,ISO, etc
Application:
Single-hook, Mobile crane, Lorry-mounted crane, Electric hoist, Concrete pump Truck, Loader, Building rotary tower crane, Hydraulic machinery, Hydraulic lift/crane,shear fork lifter, gantry crane, overhead crane, Lifting
FAQ
- Can i bought extra transmitter or receiver? Of course
- Can i change the button stick? Yes, of course
- Can i select 433Mhz or 446Mhz? Of course.
- Can i change the function button? Of course, tell me your requirement.
